JTN1100S

Servo energy-saving injection molding machines:there is no extra energy consumption due to output volume changes according to load alteration.In the phase of holding pressure,servo motor lowers rotate speed and consumes a little of energy.In the phase of cooling ,motor doesn,t work and consumes no energy. According to different products,servo energy-saving injection molding machines will save20%-80% energy and bring you prominent economic benefit.

JTN1100SSERVO ENERGY SAVE PLASTIC INJECTION MOLDING MACHINE

Product Overview Technical Parameters

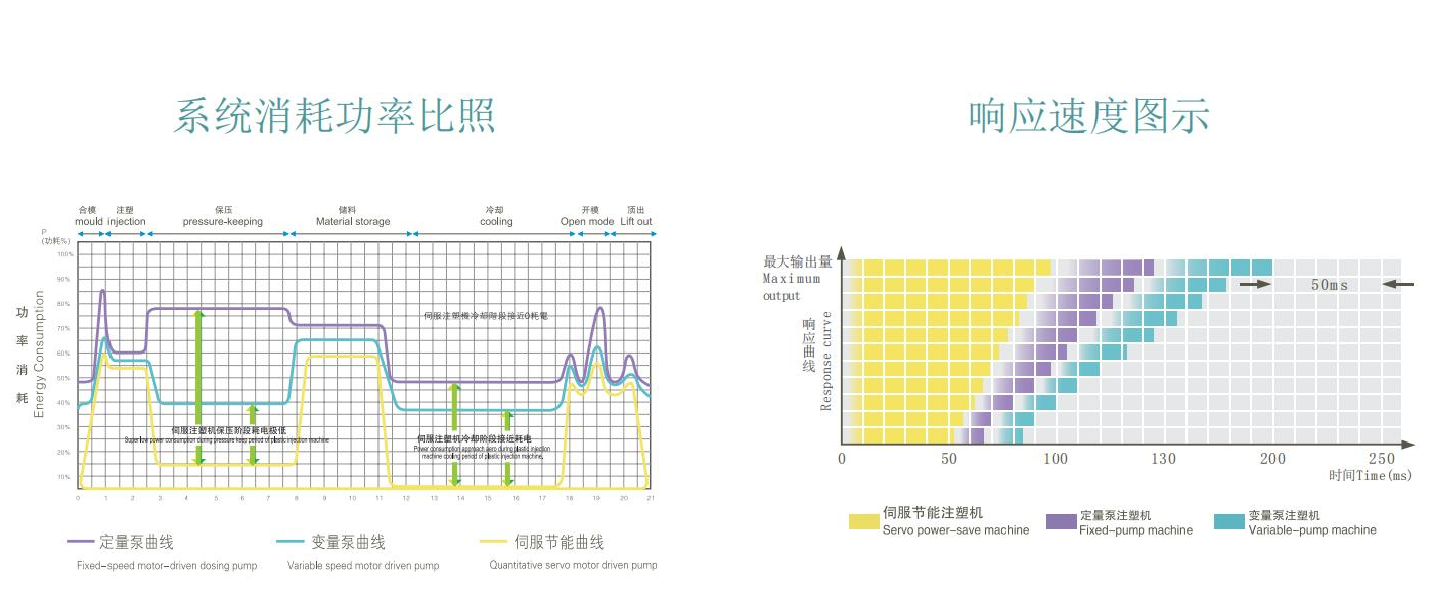

SUPER ENERGY SAVING

Compared with variable pump system, it can save 40% of the power. Compared with constant flow pump and speed setter. It can save 60% of the power (the different kinds of products has different energy saving effects).

HIGH PRECISION HIGH RESPONSE

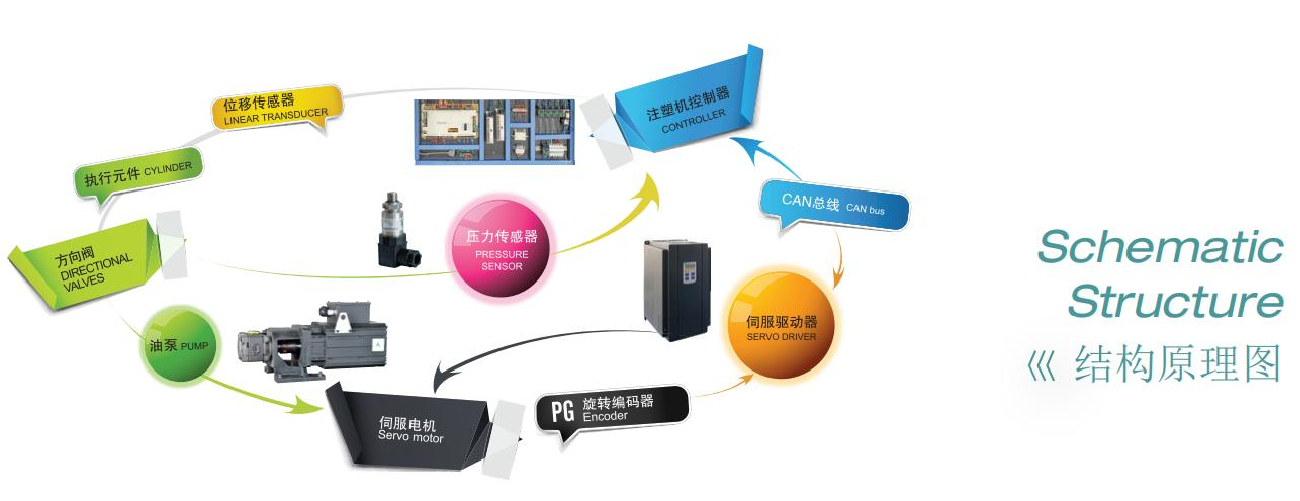

The pressure sensor and rotary encoder with high precision and high sensitivity achieve pressure,flow closed-loop control, allows the repeat precision error to be less than 1%. When servo motor reaches big quantity, the output power just needs 0.05 seconds.

LOW NOISE

The noise is below 78db. Servo motor has almost no noise during no operation.

SAVE THE COOLING WATER

No constant flow pump and speed set motor overflow heating. When the temperature of hydraulic oil is lower, the cooling water is reduced greatly.

规格 SPECIFICATION	单位 UNIT	JTN1100S
		A	B	C	D
注射装置 INJECTION UNIT
螺杆直径 Screw diameter	mm	100	110	120	130
理论注射容量 Shot volume(theoretical)	cm³	4712	5702	6899	8348
注射重量 Injection weight(ps)	g	4288	5189	6278	7597
注射速率 Injection rate	g/s	660	798	966	1169
注射压力 Injection pressure	MPa	207	171	144	123
螺杆转速 Screw speed	rpm	0~100
锁模装置 CLAMPING UNIT
合模力 Clamping force	KN	11000

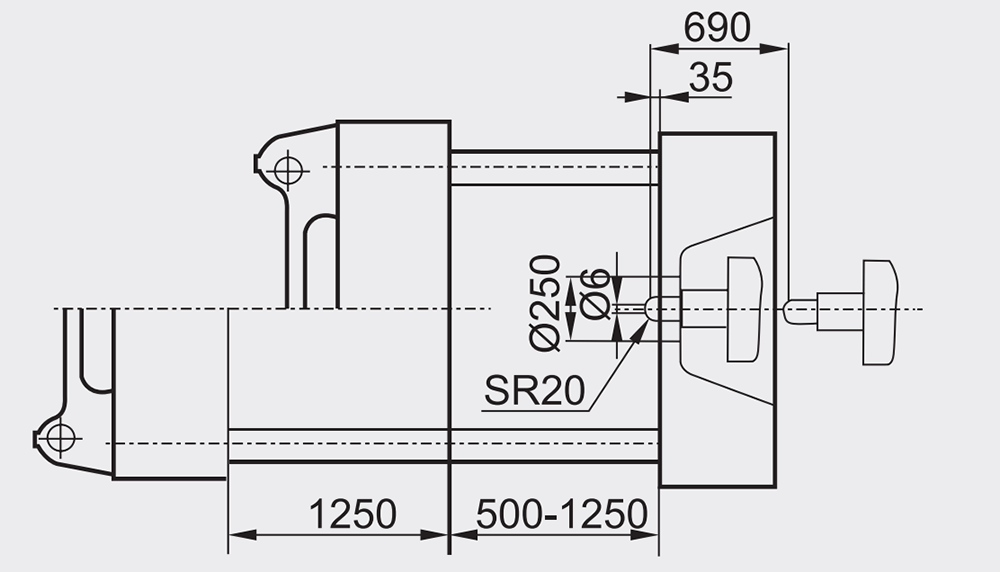

移动模板行程 Moving Mould-plate stroke	mm	1250

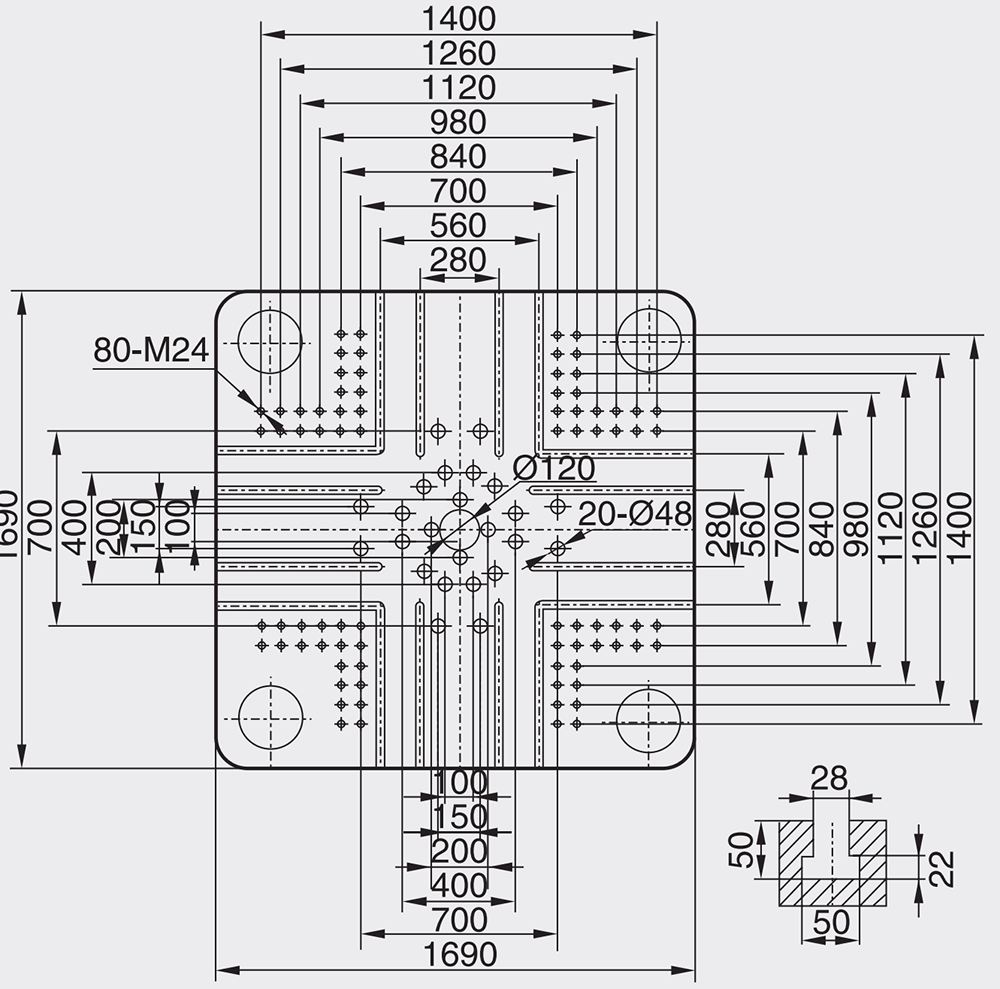

拉杆间距(宽x高) Space between tie bars(WxH)	mm	1170 x 1170
最大模厚 Max.Mould height	mm	1250
最小模厚 Min.Mould height	mm	500
液压顶出行程 Hydraulic Ejector stroke	mm	325
液压顶出力 Hydraulic Ejector force	kN	245
其它 OTHERS
最大油泵压力 Max.Pump pressure	MPa	16
油泵电机功率 Pump motor power	kW	67+67
加热功率 Heating power	kW	60.9 / 67 / 73 / 75

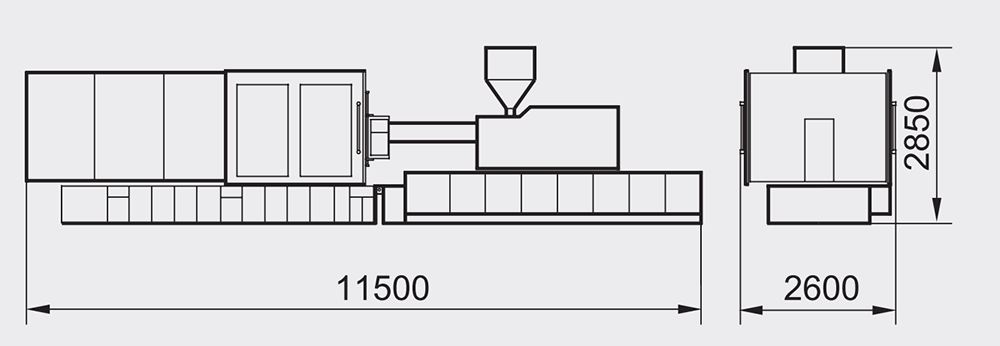

外形尺寸 Machine dimension(LxWxH)	m	11.5 x 2.6 x 2.85
油箱容积 Oiltank cubage	L	2000
机器重量 Machine weight	t	50
