JTN650S

Servo energy-saving injection molding machines:there is no extra energy consumption due to output volume changes according to load alteration.In the phase of holding pressure,servo motor lowers rotate speed and consumes a little of energy.In the phase of cooling ,motor doesn,t work and consumes no energy. According to different products,servo energy-saving injection molding machines will save20%-80% energy and bring you prominent economic benefit.

JTN650SSERVO ENERGY SAVE PLASTIC INJECTION MOLDING MACHINE

Product Overview Technical Parameters

SUPER ENERGY SAVING

Compared with variable pump system, it can save 40% of the power. Compared with constant flow pump and speed setter. It can save 60% of the power (the different kinds of products has different energy saving effects).

HIGH PRECISION HIGH RESPONSE

The pressure sensor and rotary encoder with high precision and high sensitivity achieve pressure,flow closed-loop control, allows the repeat precision error to be less than 1%. When servo motor reaches big quantity, the output power just needs 0.05 seconds.

LOW NOISE

The noise is below 78db. Servo motor has almost no noise during no operation.

SAVE THE COOLING WATER

No constant flow pump and speed set motor overflow heating. When the temperature of hydraulic oil is lower, the cooling water is reduced greatly.

规格 SPECIFICATION	单位 UNIT	JTN650S
		A	B	C	D
注射装置 INJECTION UNIT
螺杆直径 Screw diameter	mm	90	95	100	105
理论注射容量 Shot volume(theoretical)	cm³	2735	3048	3377	3723
注射重量 Injection weight(ps)	g	2489	2774	3073	3388
注射速率 Injection rate	g/s	552	612	679	748
注射压力 Injection pressure	MPa	184	165	149	135
螺杆转速 Screw speed	rpm	0~145
锁模装置 CLAMPING UNIT
合模力 Clamping force	KN	6500

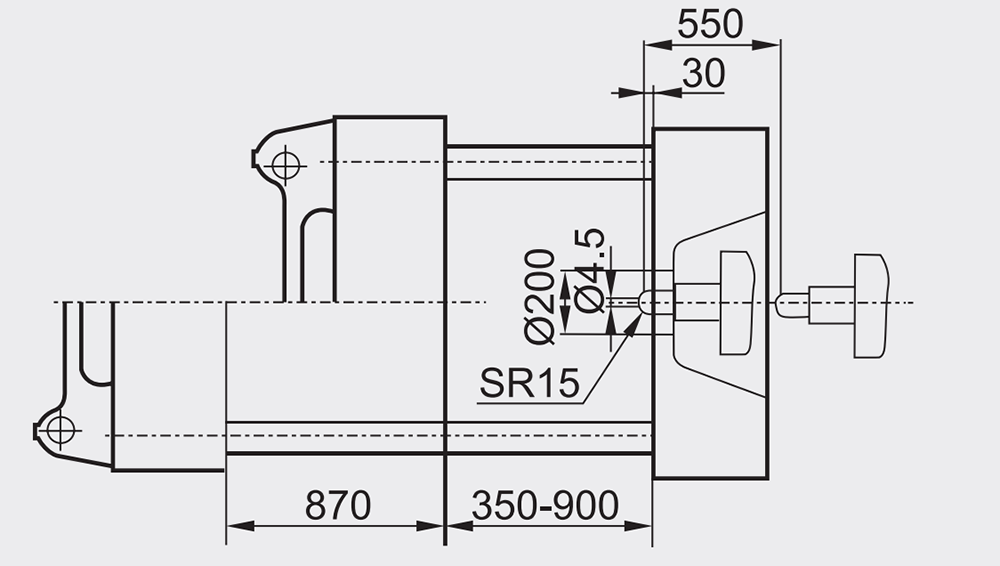

移动模板行程 Moving Mould-plate stroke	mm	870

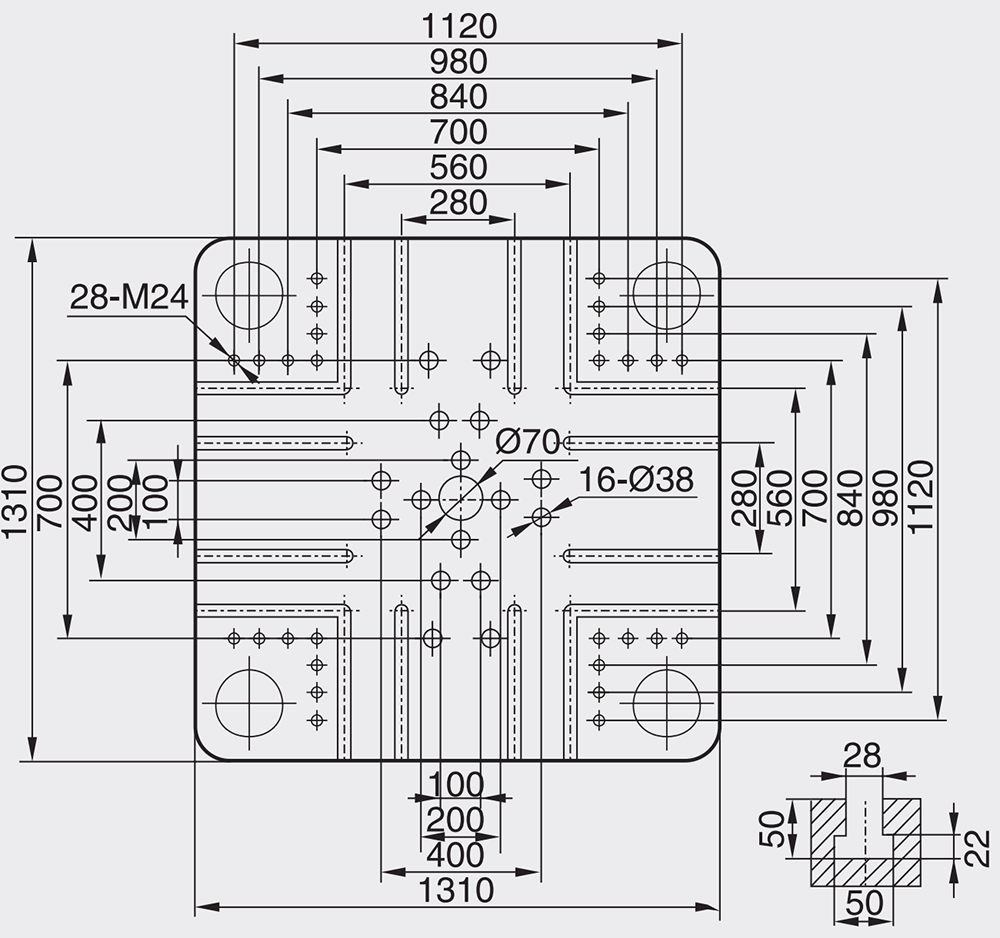

拉杆间距(宽x高) Space between tie bars(WxH)	mm	880 x 880
最大模厚 Max.Mould height	mm	900
最小模厚 Min.Mould height	mm	350
液压顶出行程 Hydraulic Ejector stroke	mm	250
液压顶出力 Hydraulic Ejector force	kN	150
其它 OTHERS
最大油泵压力 Max.Pump pressure	MPa	16
油泵电机功率 Pump motor power	kW	40.5+40.5
加热功率 Heating power	kW	42.8

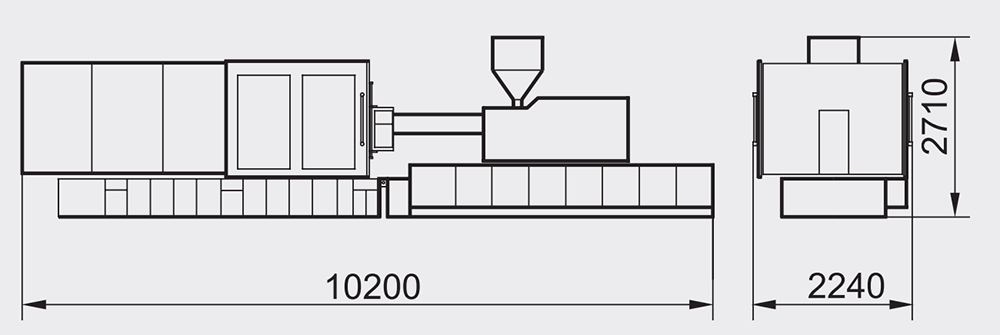

外形尺寸 Machine dimension(LxWxH)	m	10.2 x 2.24 x 2.71
油箱容积 Oiltank cubage	L	1200
机器重量 Machine weight	t	28
