Small clamping unit with large shot weight, suitable for different PET preform mould requirements.
Equip with low speed and high torque hydraulic motor which is
good for charging material stably and fast.
Big diameter screw and barrel, special design for PET material.
Increased ejector force and stroke to improve the ejecting speed.
Equip with special cooling water distributor and compressed air valve for easy operation.
Max mould height is big for different type preform mould.
Platen hole could be drilled specially according to preform mould, cancel clamp plate for fixing mould.
Equipped with socket for preform conveyor.
| 规格 SPECIFICATION | 单位 UNIT | JTL270PETS |
| 注射装置 INJECTION UNIT | ||
| 螺杆直径 Screw diameter | mm | 75 |
| 螺杆长径比 Screw diameter | 25 | |
| 理论注射容量 Shot volume(theoretical) | cm³ | 1479 |
| 注射重量 Injection weight(ps) | g | 1597 |
| 注射速率 Injection rate | g/s | 400 |
| 注射压力 Injection pressure | MPa | 150 |
| 螺杆转速 Screw speed | rpm | 126 |
| 锁模装置 CLAMPING UNIT | ||
| 合模力 Clamping force | KN | 2700 |
| 移动模板行程 Moving Mould-plate stroke | mm | 540 |
| 最大模厚 Max.Mould height | mm | 600 |
| 最小模厚 Min.Mould height | mm | 200 |
| 拉杆间距(宽x高) Space between tie bars(WxH) | mm | 580 x 580 |
| 液压顶出力 Hydraulic Ejector force | kN | 90 |
| 液压顶出行程 Hydraulic Ejector stroke | mm | 150 |
| 顶出点数 Hydraulic Ejector stroke | n | 9 |
| 其 它 OTHERS | ||
| 最大油泵压力 Max.Pump pressure | MPa | 16 |
| 油泵电机功率 Pump motor power | kW | 45.2 |
| 加热功率 Heating power | kW | 30.7 |
| 外形尺寸 Machine dimension(LxWxH) | m | 6.73 x 1.6 x 2.02 |
| 油箱容积 Oiltank cubage | L | 640 |
| 机器重量 Machine weight | t | 9 |

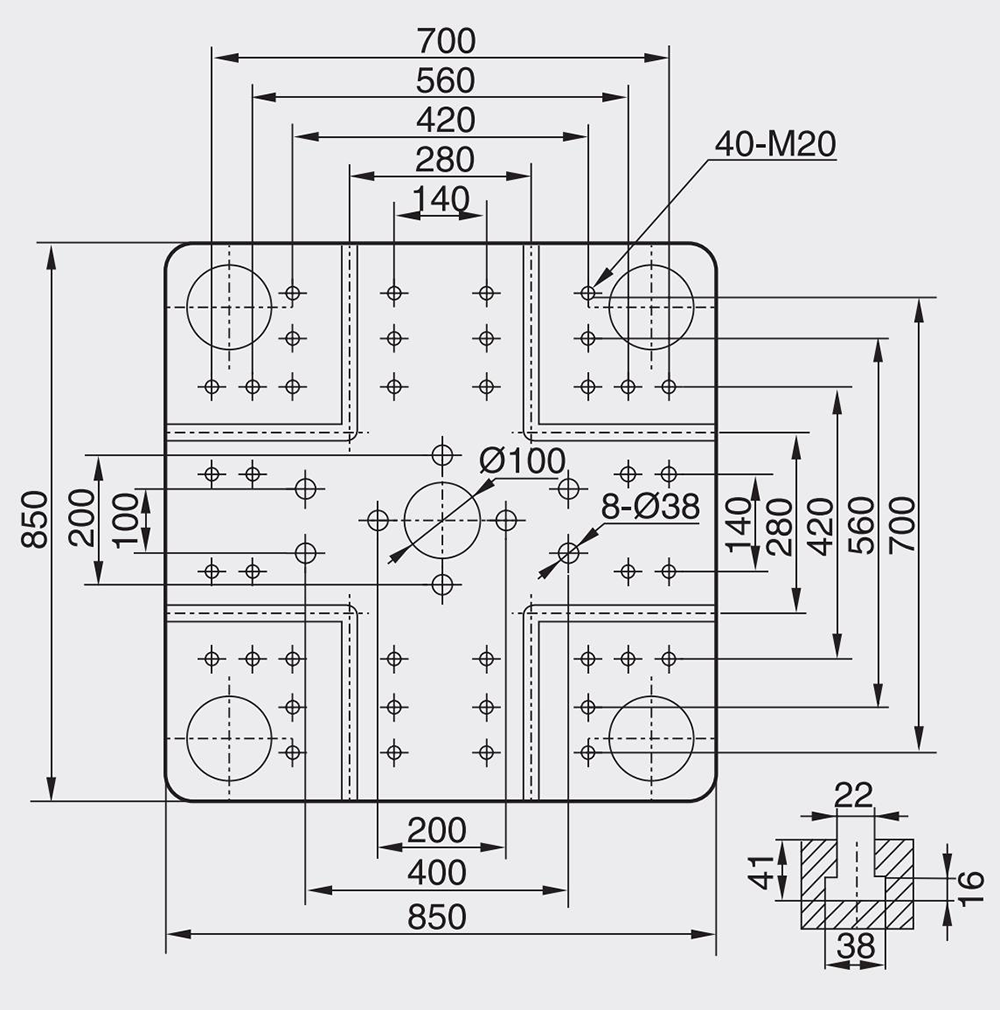

模板正面尺寸

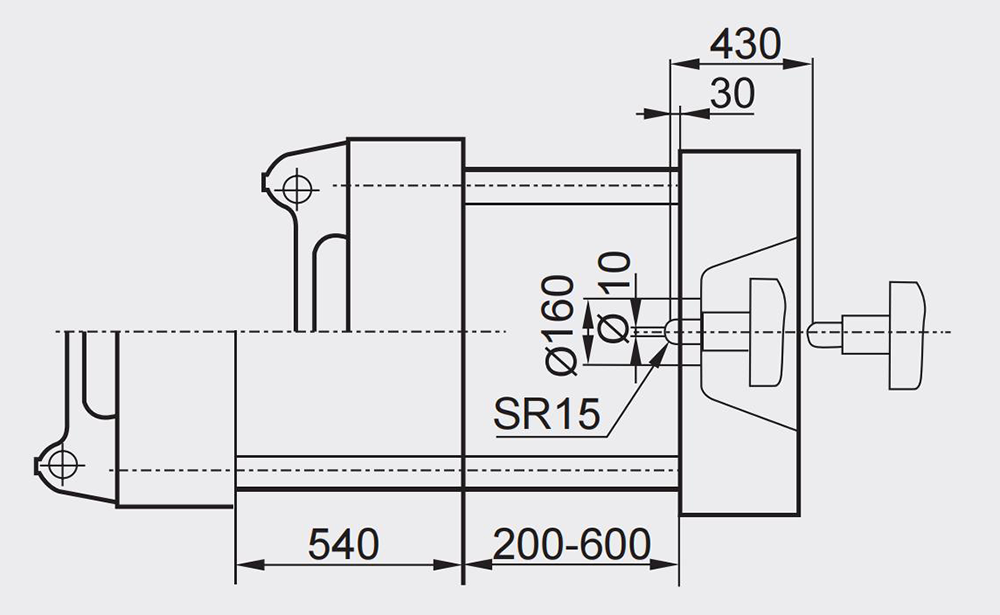

模板侧面尺寸

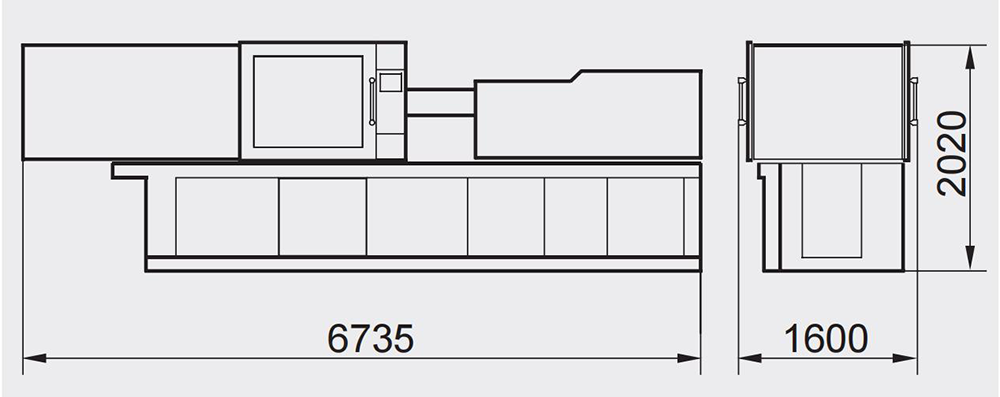

安装图
